Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective

    Buy cheap Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective from wholesalers

    Buy cheap Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective from wholesalers
    • Buy cheap Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective from wholesalers
    • Buy cheap Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective from wholesalers

    Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective

    Ask Lasest Price
    Brand Name : NO
    Model Number : MIT300
    Certification : ISO9001, ISO14001, ISO13485, CE, RoHs
    Price : Discuss
    Payment Terms : T/T
    Supply Ability : 2000 units per year
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective

    Infinity Optical Upright Metallurgical Microscope Long Working Distance Objective

    MIT300 infinity optical upright metallurgical microscope with long working distance objective has great quality and high resolution.It adapts oversize view field eyepiece,viewing field up to 22mm for comfortable observation.Its mechanical stge with fast lowering unit can increase 50mm for wroking distance,more convient for observing big size sampe.Qunituple backward nosepiece with a set of long working distance metallurgical infinity Plan objective.

    MIT300 upright metallurgical microscope is widely used in electronic industry,teaching,research metallographic analysis and so on.

    MIT300 Infinity Upright Metallurgical Microscope Specifications:

    1.Eyepiece Specification

    TypeMagnificationsField Diaphragm(mm)Tube Diameter(mm)
    WF10X/2210X2230
    WF10X/22(reticule 0.1m)10X2230

    2.Metallurgical Objective Lens Specification

    MagnificationN.A.Working Distance(mm)Conjugate(mm)
    LPL 5X0.1316.04
    LPL 10X0.2518.48
    LPL 20X0.408.35
    LPL 40X0.663.90
    LPL 50X0.701.95
    LPL 80X0.800.85
    LPL 100X(dry)0.901.10

    3.MIT300 Upright Metallurgical Microscope Technical Specifications

    ModelMIT300
    Observation HeadSeidentopf head,inclined 30°,rotatable 360°
    OcularWF10X/22mm(adjustable)
    WF10X/22mm(adjustable,reticule 0.1mm)
    L.W.D Infinity Metallurgical ObjectiveLPL 5X/0.13, LPL 10X/0.25, LPL 20X/0.40, LPL 50X/0.70
    Backward Nosepiece5 holes
    Mechanical Stage200mm x150mm,travel 77mm x52mm
    Polarizing UnitPolarizer/Analyzer
    Focus deviceCoaxial coarse and fine focusing knobs
    Reflecting Illumination5W LED lamp(100V~240V)
    FilterBlue

    (Note: If you need other optional accessories,please send me a mail)

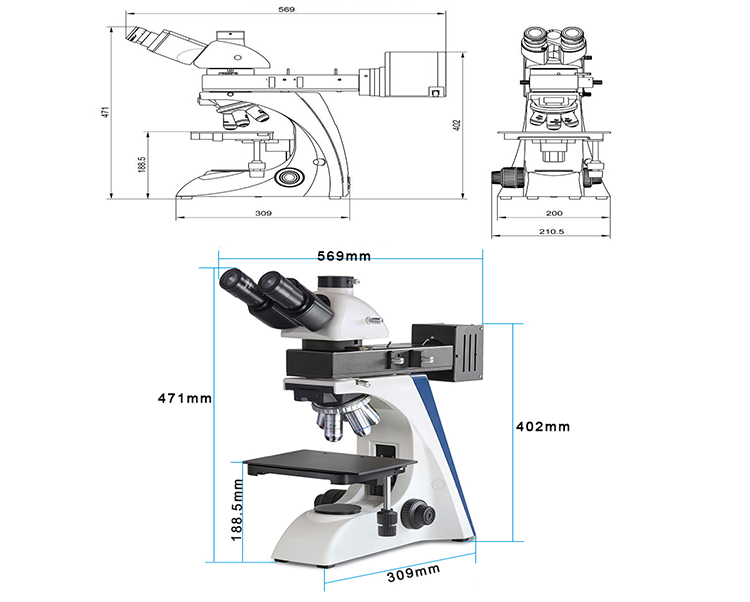

    MIT300 Infinity Upright Metallurgical Microscope Display:


    Why choose us?

    1. We are manufacturer in China, and we have rich experience team and we have

    rich experience for microscope export.

    2. We focus on middle and high end microscope

    3. We just supply quality microscope, not very cheap microscope.

    4. The customer can ask us carefully before purchase, and our team is always

    patient.


    FAQ:


    1. Why choose us?

    We are your office in China, and we have rich experience team and rich

    experience for microscope export.


    2. What is the payment term?

    We just accept T/T in advance now.


    3. How to deliver?

    We can deliver by express, by air and by sea


    4. What is the warranty?

    One year after delivery.


    5. What certificate we have now?

    ISO9001, ISO14001, ISO13485, CE, RoHs
