    10X-18mm Eyepiece Upright Metallurgical Microscope Reflecting Halogen Illumination

    Ask Lasest Price
    Brand Name : NO
    Model Number : MIT200
    Certification : ISO9001, ISO14001, ISO13485, CE, RoHs
    Price : Discuss
    Payment Terms : T/T
    Supply Ability : 1000 unit per year
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    10X-18mm Eyepiece Upright Metallurgical Microscope Reflecting Halogen Illumination

    10X-18mm Eyepiece Upright Metallurgical Microscope Reflecting Halogen Illumination


    MIT200 Metallurgical Microscope Applications:

    MIT200 metallurgical microscope is designed for material surface observation and mechanical state detection. It can accurately display the color of different metals and easy to use for analysing the internal structure of electronic products. One of the main part of the microscope is metallurgical epi illumination, the light source is reflect 6V30W Halogen Lamp.

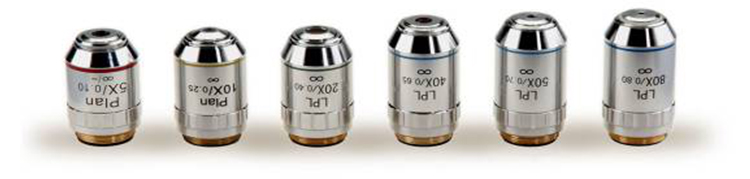

    MIT200 Metallurgical Microscope Objective Lens:

    Long Working Distance Infinity Plan Objective (no cover glass):

    LPL 5×/0.13 W.D=24.23mm

    LPL 10×/0.25 W.D=18.48mm

    LPL 20×/0.4 W.D=8.35mm

    LPL 40×/0.65 W.D=3.90mm

    LPL 50×/0.7 W.D=1.95mm

    LPL 80×/0.8 W.D=0.85mm

    LPL 100×/0.9 W.D=1.00mm


    MIT200 Metallurgical Microscope Specification:


    HeadBinocularTrinocular
    Seidentopf Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Left Eyepiece Tube Diopter Adjustable +/-5°, Trinocular Head Light Split 20:80.
    EyepieceWF10x/18mm, 1 pc
    WF10x/18mm, With Micrometer 0.1mm Div, 1 pc
    NosepieceQuadruple
    ObjectiveLong Working Distance Infinity Plan Objective (no cover glass)
    LPL 5x/0.13, W.D.=24.23mm
    LPL 10x/0.25, W.D.=18.48mm
    LPL 40x/0.65, W.D.=3.90mm
    StageMechanical Stage Size 200X140mm, 76mmX52mm
    CondenserAbbe N.A.1.25, With iris Diaphragm
    FocusingCoaxial Coarse and Fine Focusing Knob
    IlluminationReflect Light Source 6V30W Halogen Lamp
    With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty)
    Power110V~240V Wide Range Voltage

    MIT200 Packing Size: 570mm×275mm×450mm Gross Weight: 10.5 kgs Net Weight: 8 kgs

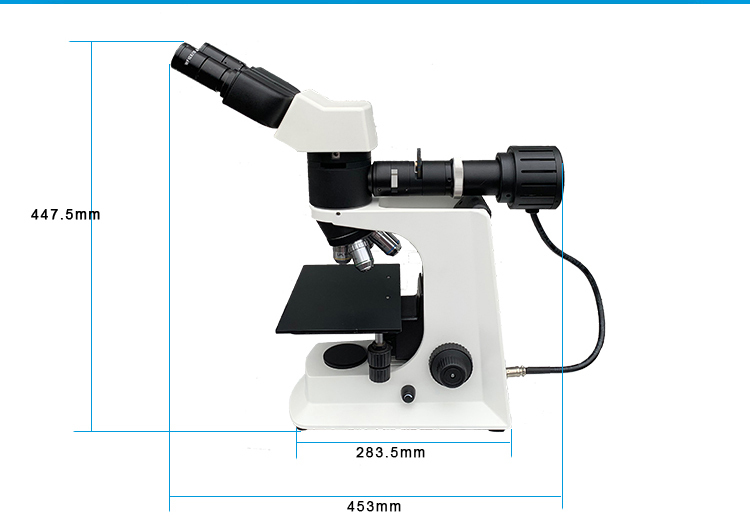

    MIT200 Metallurgical Microscope Display:
