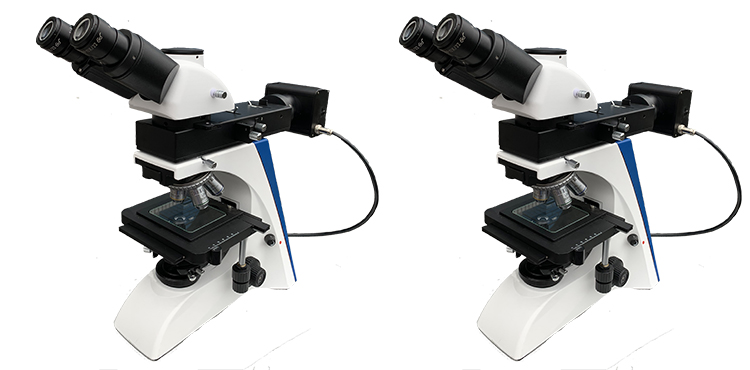

MIT500 Upright Transmitting and Reflecting 100X Dry Objective Metallurgical Microscope

Features

01.Seidentopf head,trinocular inclined 30°,rotatable 360°,Interpupillary distance 48mm~76mm

02.Light split 100:0/80:20

03.Professional wide field eyepiece WF10X/22mm,Eyepiece tube dia.30.0 mm,diaptor adjustable .

04.Backward qunituple nosepiece,long working distance infinity metallurgical Plan objective

05.182mm *140mm mechanical stage ,traveling 77mm*52mm

06.Coaxial Coarse and Fine Focusing Unit,Coarse stroke: 25mm,Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.

Technical Specifications

Eyepiece:

WF10X／22mm (adjustable)

WF10X／22mm (adjustable , reticule 0.1mm)

Metallurgical LWD Infinity Plan Objective:

5X／0.10 W.D=24.23mm

10X／0.25 W.D=18.48mm

20X／0.40 W.D=8.35mm

50X／0.70(S) W.D=1.95mm

Seidentopf Trinocular Head:

Inclined 30°,rotatable 360°, Interpupilary distance: 48mm～76mm
Light distribution (both): 100: 0 (100% for eyepiece)

80:20 (80% for trinocular head and 20% for eyepiece)

Nosepiece:

Quintuple

Mechanical Stage Stage size:

200mm x 150mm Travel range: 77mm x 52mm

Polarizing Unit:

Polarizer /Analyzer

Condenser:

Abbe N.A.1.25 , with Iris Diaphragm.

Coaxial Coarse and Fine Focusing Unit:

Coarse stroke: 25mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.

Reflecting Illumination:

12V/50W Halogen lamp (Input voltage:100V～240V),

Transmitting Illumination:

12V/20W Halogen lamp (Input voltage:100V～240V),

Field diaphragm,Center adjustable.

Filter :

Blue

Optional C-Mount:

0.5X( Focus Adjustable)

1 X

Packing Size: 750mm×360mm×450mm Gross Weight: 16 kgs Net Weight: 12kgs
