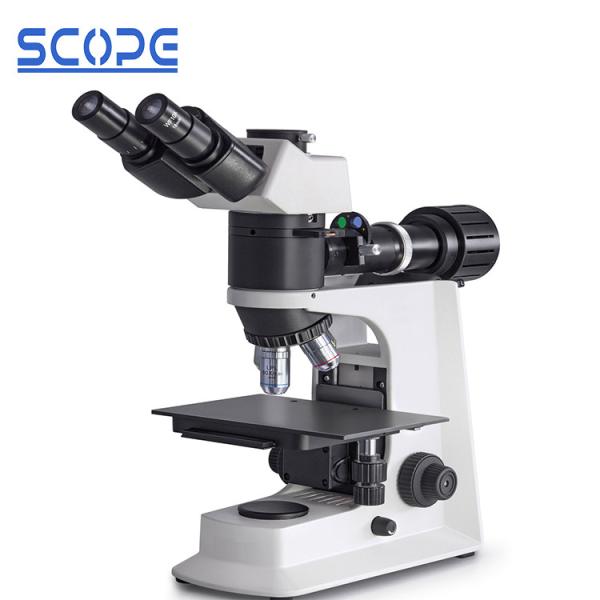

MIT200 Upright Metallurgical Infinity Large Stage Binocular
Trinocular Microscope Large Stage Upright Metallurgical Microscope , Inverted
Metallurgical Microscope
MIT100/MIT200 Large Stage Metallurgical Microscope Features:
1. Large mechanical stage
200mm x150mm mechanical stage ,moving range 76 mm x52mm, which can
observe large sample and provide comfortable viewing experience.
2. Long working distance Infinity Metallurgical Plan Objective
| Objective | N.A. | Working Distance(mm) |
| LPL 5X | 0.13 | 16.04 |
| LPL 10X | 0.25 | 18.48 |
| LPL 20X | 0.40 | 8.35 |
| LPL 50X | 0.70 | 1.95 |
| LPL 80X | 0.80 | 0.85 |
| LPL 100X(dry) | 0.90 | 1.10 |
(Note: the standard MIT100/MIT200 metallurgical microscope matches
with LPL5X,LPL10X and LPL 50X objective lenses,if you want to get
other magnifications,please send a mail to us)
3. EPI Reflecting Illumination
1. Analyzer 2. Polarizer 3. Five-hole turret filter unit 4.
Aperture diaphragm 5. 30W illuminator
MIT100/MIT200 Upright Metallurgical Microscope Outfits
| Head | Seidentopf Head, Trinocular Inclined 30°, Rotatable 360°,
Interpupillary Distance 48-75mm, Light Split 80:20 |
| Eyepiece | WF10x/18mm, High Eyepoint, Diopter Adjustable |
| WF10x/22mm, High Eyepoint, Diopter Adjustable(reticule 0.1mm) |
| Nosepiece | 4 holes backward nosepiece |
| Objective | LPL5x/0.13, W.D.=24.23mm |
| LPL10x/0.25 W.D.=18.48mm |
| LPL50x/0.70(S) W.D.=1.95mm |
| Mechanical Stage | Mechanical Stage for Reflect Illumination, Size 200x150mm, Travel
Range 76x52mm |
| Focusing | Coaxial Coarse and Fine Focusing Knob |
| Illumination | Reflect Light, 12V 20W Halogen Lamp, Kohler Illumination With Field
Diaphragm | Reflect Light, 6V 20W Halogen Lamp, Kohler Illumination With Field
Diaphragm Center Adjustable |
| Filter | Five-hole tureet filter unit(green,amber,blue,empty,grey) |
| Power | Wide Range Voltage 100~240V |
MIT Series Metallurgical Microscope Size(mm)

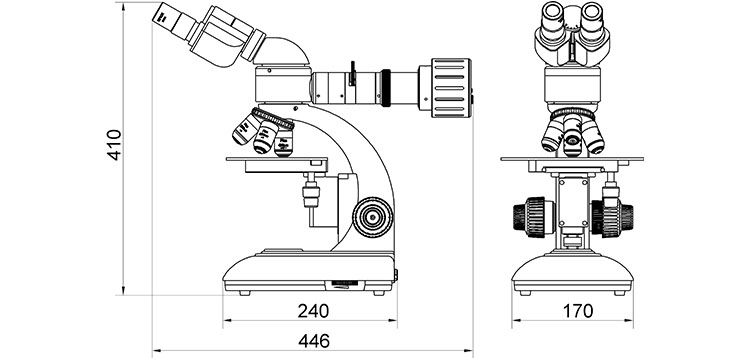

1. MIT100 upright metallurgical microscope size

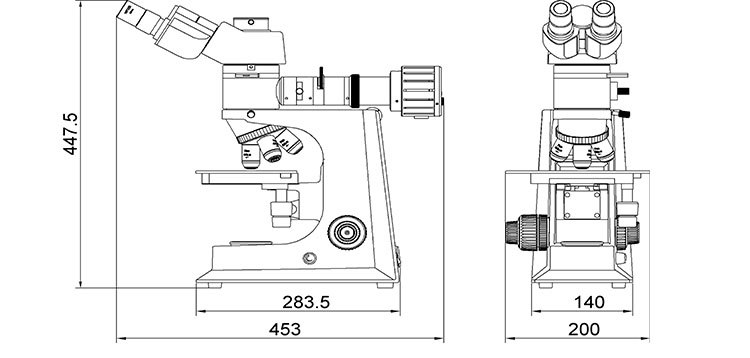

2. MIT200 metallurgical microscope size
