    College Research Electronic Binocular Microscope Infinity Plan Objective

    SMART-4 Biological Microscope

    College Research Electronic Binocular Microscope Infinity Plan Objective

    Product Description


    Smart series laboratory biological microscope is designed for college teaching, clinical verify. It is the original style which can upgrade to other microscopes. The feature of steady structure, convenient operation and clear image is suitable for observing various biological specimens, and mostly applied in college and hospital.


    -- WF10X/18mm or WF10X/20mm high eyepoint eyepiece

    -- Finity achromatic,finity Plan achromatic,infinity E-Plan achromatic and infinity Plan achromatic objectives can be seclected

    -- Backward nosepiece ,4 sets objective lens available

    -- Phase contrast unit and independent phase contrast unit ,apply to infinity optical system

    -- Optional special designed wire winding device on the microscope stand for easy carry and storage.

    Microscope Technical Parameter List


    ItemsSpecification

    SMART

    -1

    SMART

    -2

    SMART

    -3

    SMART

    -4

    EyepieceWF 10X-18mm●●
    WF 10X- 20mm●●●●●●

    Finity Achromatic

    Objective

    4X
    10X
    40X(S)
    100X/1.25 (Oil) (S)

    Finity Plan

    Objective

    4X
    10X
    40X/0.65 (S)
    100X/1.25 (Oil) (S)

    Infinity E-Plan

    Objectives

    4X
    10X
    40X (S)
    100X (Oil) (S)

    Infinity Plan

    Objectives

    4X
    10X
    40X (S)
    100X (Oil) (S)
    Plan 20X
    Plan 60X (S)
    Seidentopf Binocular Head

    Inclined 30°,Rotatable 360°,

    Interpupilary Distance 48-75mm

    Seidentopf

    Trinocular Head

    Inclined 30°,Rotatable 360°,

    Interpupilary Distance 48-75mm,

    Light Distribution 20:80

    NosepieceQuadplex , Quintuple (Optional)
    Mechanical Stage

    Stage Size: 145 mm×140mm

    Travel: 76mmX52mm, Scale: 0.1mm

    Coaxial Coarse and Fine Focusing Knobs

    Travel Range: 26mm, Scale: 2um

    Two Slide Holder

    Rackless(Integrated) stage,

    size: 140×135mm,Travel range: 75×35mm,
    Two-slide holder

    CondenserAbbe N.A. 1.25(Iris Diaphragm)
    Illumination3W-LED Illumination Systems
    12V/20W Halogen Lamp
    6V/30W Halogen Lamp
    Field Diaphragm
    Dark Field CondenserDry, apply to 4X - 40X objective
    Polarizing AttachmentAnalyzer/Polarizer

    Independent

    phase contrast unit

    10X /20X /40X /100X
    FilterBlue /Green /Yellow
    C-Mount1X/ 0.5X/0.75X (Focus adjustable)
    Mirror
    Wire winding device

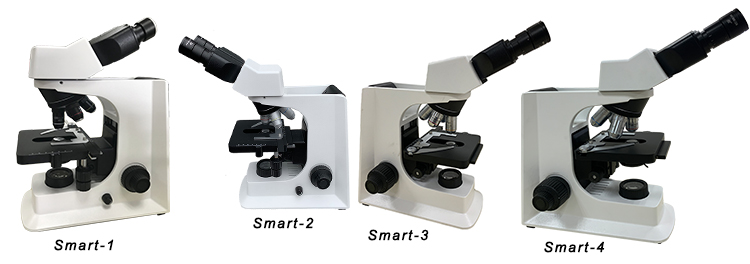

    Microscope Picture Display
