    Precise Laboratory Biological Microscope Smart Dry / Wet Oil Darkfield Condenser

    Ask Lasest Price
    Brand Name : NO
    Model Number : Smart
    Certification : ISO9001, ISO14001, ISO13485, CE, RoHs
    Price : Discuss
    Payment Terms : T/T
    Supply Ability : 1000 units per year
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Precise Laboratory Biological Microscope Smart Dry / Wet Oil Darkfield Condenser


    Precise Laboratory Biological Microscope Smart Dry / Wet Oil Darkfield Condenser

    Features:


    1. Clear imaging and wide field of vision, which can be widely used in biology, medicine, industry, agriculture and other fields.

    2. Finity achromatic system,finity Plan achromatic system ,infinity E-Plan achromatic system, and infinity Plan achromatic system can be selected.

    3. Wet/dry dark field condenser can be chosen

    4. Suitable for research laboratories, education, industrial laboratories, medical laboratories.


    Parameters:


    ItemsSpecification

    SMART

    -1

    SMART

    -2

    SMART

    -3

    SMART

    -4

    EyepieceWF 10X-18mm●●
    WF 10X- 20mm●●●●●●

    Finity Achromatic

    Objective

    4X
    10X
    40X(S)
    100X/1.25 (Oil) (S)

    Finity Plan

    Objective

    4X
    10X
    40X/0.65 (S)
    100X/1.25 (Oil) (S)

    Infinity E-Plan

    Objectives

    4X
    10X
    40X (S)
    100X (Oil) (S)

    Infinity Plan

    Objectives

    4X
    10X
    40X (S)
    100X (Oil) (S)
    Plan 20X
    Plan 60X (S)
    Seidentopf Binocular Head

    Inclined 30°,Rotatable 360°,

    Interpupilary Distance 48-75mm

    Seidentopf

    Trinocular Head

    Inclined 30°,Rotatable 360°,

    Interpupilary Distance 48-75mm,

    Light Distribution 20:80

    NosepieceQuadplex , Quintuple (Optional)
    Mechanical Stage

    Stage Size: 145 mm×140mm

    Travel: 76mmX52mm, Scale: 0.1mm

    Coaxial Coarse and Fine Focusing Knobs

    Travel Range: 26mm, Scale: 2um

    Two Slide Holder

    Rackless(Integrated) stage,

    size: 140×135mm,Travel range: 75×35mm,
    Two-slide holder

    CondenserAbbe N.A. 1.25(Iris Diaphragm)
    Illumination3W-LED Illumination Systems
    12V/20W Halogen Lamp
    6V/30W Halogen Lamp
    Field Diaphragm
    Dark Field CondenserDry, apply to 4X - 40X objective

    (Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.)


    Applications:


    The Smart series dark filed biological microscope has the characteristics of clear imaging, wide field of vision and easy operation. They can be widely used in medical and health, laboratory and other fields. They are ideal instruments for medical, teaching and scientific research units.

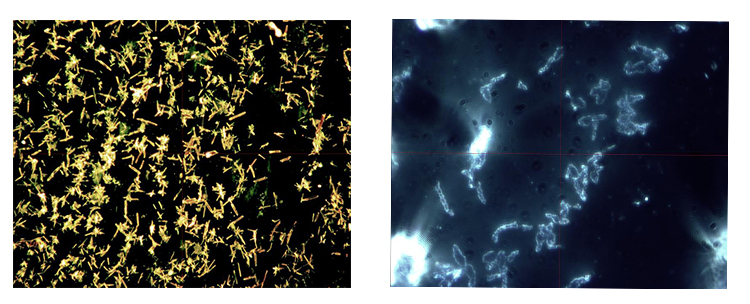

    The Smart series dark field biological microscope observation renderings are as follows:

    Why Choose Us:


    1. Fast Reply:

    All your inquires will replied within 24 hours.


    2. Top Quality:

    Strict quality control system.


    3. Excellent Service:

    We treat clients as friend and aims at building long term business relationship.


    4. OEM Accepted:

    We Can print your own logo on the products.


    5. Timely Delivery:

    Your order shall be shipped once finished.


    6. Examination Assurance:

    CE,RoHS,ISO certification
