    Smart Laboratory Biological Microscope 1600X Magnification For Medical University

    Ask Lasest Price
    Brand Name : No
    Model Number : Smart
    Certification : ISO9001, ISO14001, ISO13485, CE, RoHs
    Price : Discuss
    Payment Terms : T/T
    Supply Ability : 15000 units per year
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

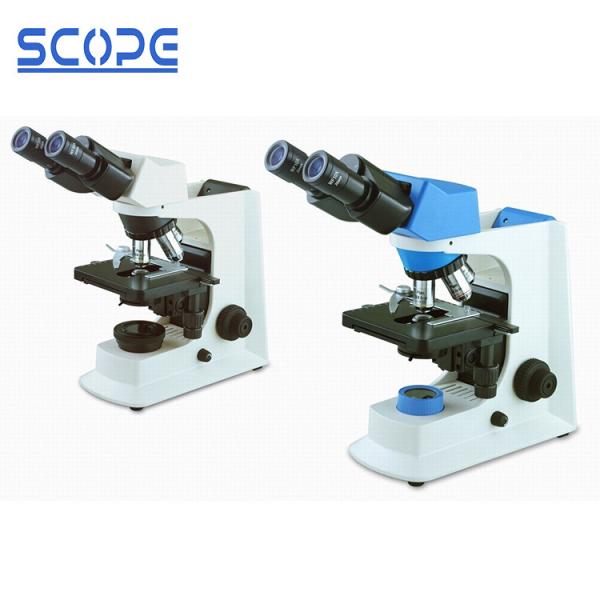

    Smart Laboratory Biological Microscope 1600X Magnification For Medical University

    Smart Series Laboratory Medical University 1600X Biological Microscope

    Product Details


    Smart series biological microscope can supply 40X-1600X magnifications.The biological microsocpe is equipped with standard WF10X wide field ocular ,optional WF16X Plan eyepiece.Binocular seidentopf head is standard,if you need to add a microscope camera ,the trinocular seidentopf head is your best choice. The USB digital imaging system that captures microscope images and live video on computer.


    The Smart series biological microscope is usually used in university labs,biological labs,medical labs.


    • Excellent OTICS infinity optical system, outstanding resolution and definition.
    • Wide filed of view in high clarity imaging.
    • Original integrated stand for excellent stability.
    • Various accessories for upgrading.
    • Back handle and observing hole convenient for carry and operation.


    Product Parameters


    1.Eyepiece Parameter

    TypeMagnificationView Field
    WF10X/1810X18mm
    WF10X/2010X20mm
    WF16X/1316X16mm

    2.Technical Parameter

    ItemsSpecificationSMART-1SMART-2SMART-3SMART-4
    EyepieceWF 10X-18 mmY
    WF10X/20mm (High eyepoint)YYY

    Finity

    Achromatic

    Objective

    4XY
    10XY
    40X(S)Y
    100X/1.25 (Oil) (S)Y
    20XO
    60X (S)O

    Finity

    Plan

    Objective

    4XY
    10XY
    40X/0.65 (S)Y
    100X/1.25 (Oil) (S)Y

    Infinity

    E-Plan Objectives

    4XY
    10XY
    40X (S)Y
    100X (Oil) (S)Y

    Infinity

    Plan Objectives

    4XY
    10XY
    40X (S)Y
    100X (S, Oil)Y
    20XOO
    60X (S)OO
    100X (S, Water)OO
    Seidentopf Binocular Head

    Inclined 30°,Rotatable 360°,

    Interpupilary Distance 48-75mm

    YYYY

    Seidentopf

    Trinocular Head

    Inclined 30°,Rotatable 360°,

    Interpupilary Distance 48-75mm,

    Light Distribution: 20:80

    OOOO
    NosepieceQuadplexYYYY
    QuintupleOOOO
    Mechanical Stage

    Stage Size: 145 X 140mm

    Travel: 76mmX52mm, Scale: 0.1mm

    Coaxial Coarse and Fine Focusing Knobs

    Travel Range: 26mm, Scale: 2um

    Two Slide Holder

    YYYY

    Rackless(Integrated) stage,

    size: 140×135mm,Travel range: 75×35mm,

    Two-slide holder

    OOOO
    CondenserAbbe N.A. 1.25(Iris Diaphragm)YYYY
    Illumination3W-LED Illumination SystemsYYYY
    12V/20W Halogen LampOOOO
    6V/30W Halogen LampOOOO
    Field DiaphragmOOOO
    Dark Field CondenserDry, apply to 4X - 40X objectiveOOOO
    Polarizing AttachmentAnalyer/PolaizerOOOO
    Fluorescence unit

    B / G Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,

    100W mercury lamp.

    OO

    Uv / V/ B/ G Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,

    100W mercury lamp.

    OO

    B / G Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G),

    5W-LED fluorescence lamp.

    OO

    Uv / V/ B/ G Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G),

    5W-LED fluorescence lamp.

    OO
    FilterBlue /Green /Yellow (Φ45mm)OOOO
    C-Mount0.5X (Focus adjustable)OOOO
    0.75X (Focus adjustable)OOOO
    1×(Focus adjustable)OOOO
    Wire winding deviceOOOO

    Note: "Y" in table is standard ,"O" is optional accessories

    Packing Size: 390mm×280mm×450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
